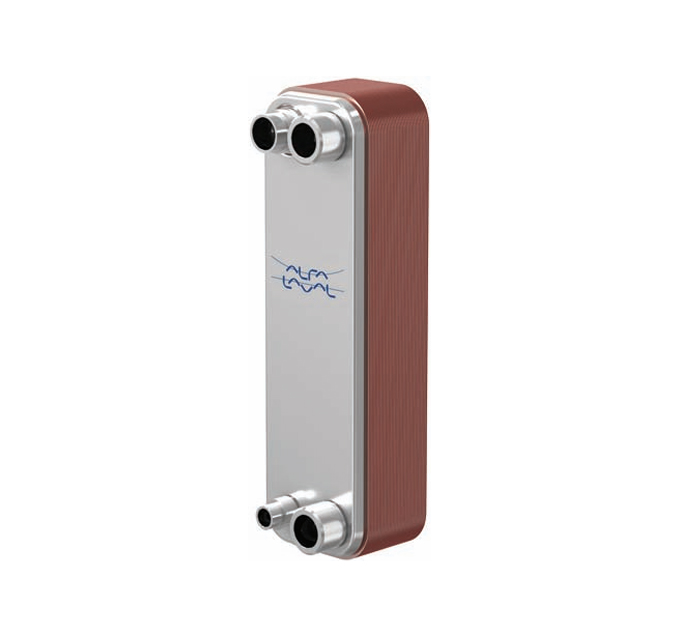

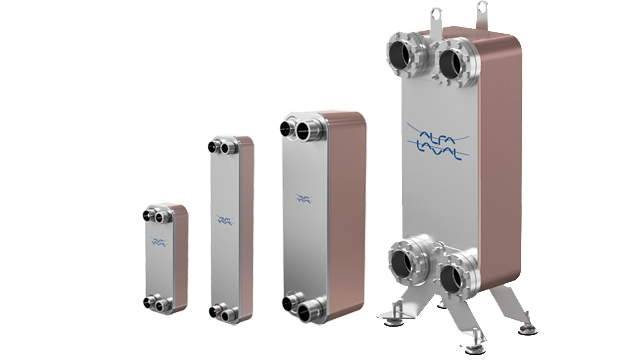

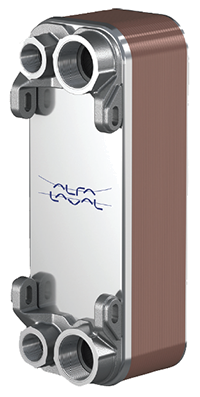

Alfa Laval Brazed Plate Heat Exchangers

Design Pressure: Up to 50 bar (725 psi) or higher for high-pressure R410A/CO2 models

Operating Temperature: -196°C to 225°C (-320°F to 437°F)

Flow Rate: Up to 150 m³/h (660 US gpm)

Plate Material: Stainless Steel (AISI 316L)

Brazing Material: Copper (standard) or Nickel (for corrosive environments/deionized water)

Connection Types: Threaded (NPT/BSP), Soldered/Sweat, Victaulic, or Flanged

Capacity Range: From fractional kW to over 1000 kW
